Accurl Max-WJ-4020L CNC Control

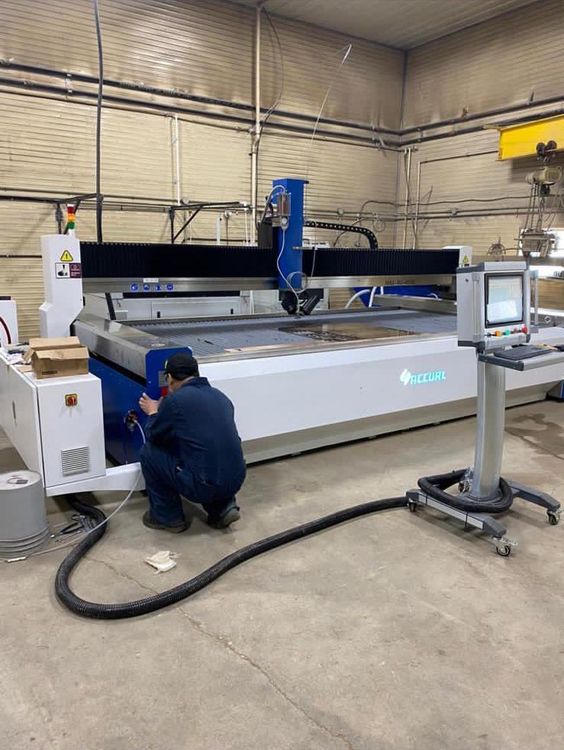

Accurl Max-WJ-4020L
Year: 2020

Working Table: 157.48″ x 78.74″
X-Axis Stroke: 157.48″
X-Axis Speed: 0 ~ 49.21 ft/min
Y-Axis Stroke: 59.84″
Y-Axis Speed: 0 ~ 49.21 ft/min
Z-Axis Stroke: 7.87″
Z-Axis Speed: 0 ~ 39.37 ft/min

Control Accuracy: +/- 0.00039″
Cutting Accuracy: +/- 0.00039″

High Pressure System: Hy. Precision Pump
Total Electric Power: 150 Amp
Max. Load Of Working Table: 2204.62 lbs
Format Supported: Al, Plt, Dxf, Etc.
Machine Weight: 12,125.41 lbs

Outside Dimensions: 218.50″ x 120.08″ x 72.83″
Intensifier Pump: Ultra 100s
Dynamic Head: +/- 10 Degrees
Voltage: 575v/3ph/60hz
