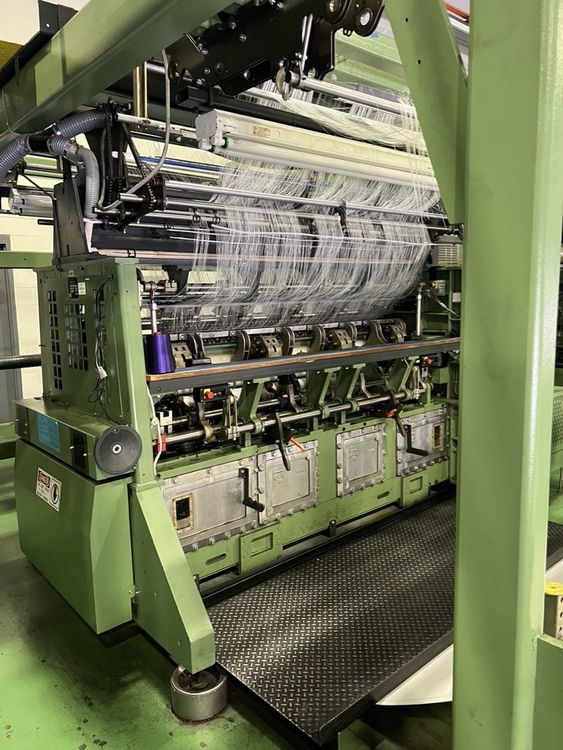

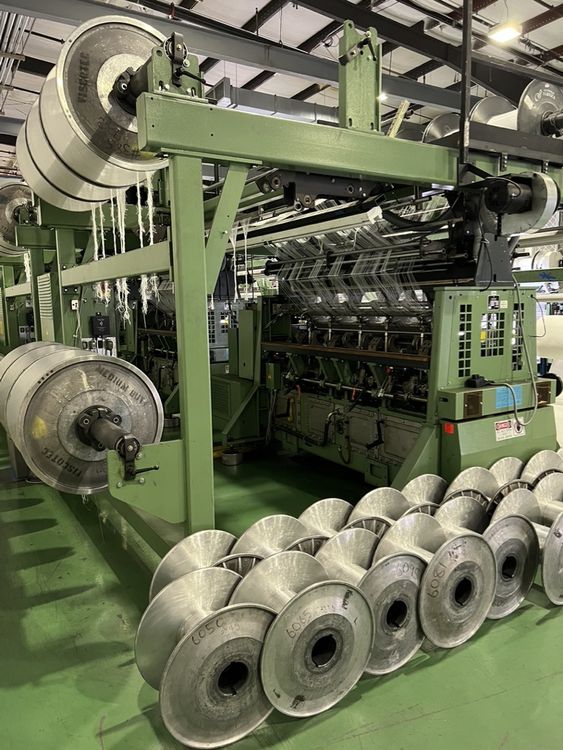

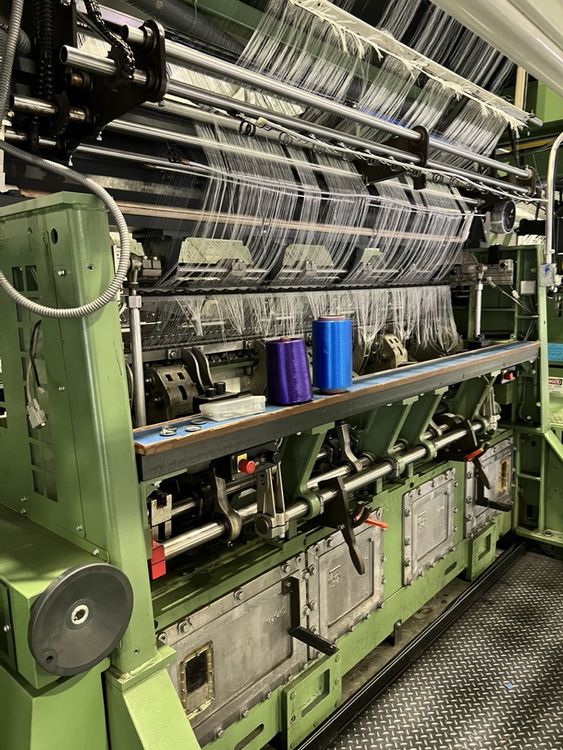

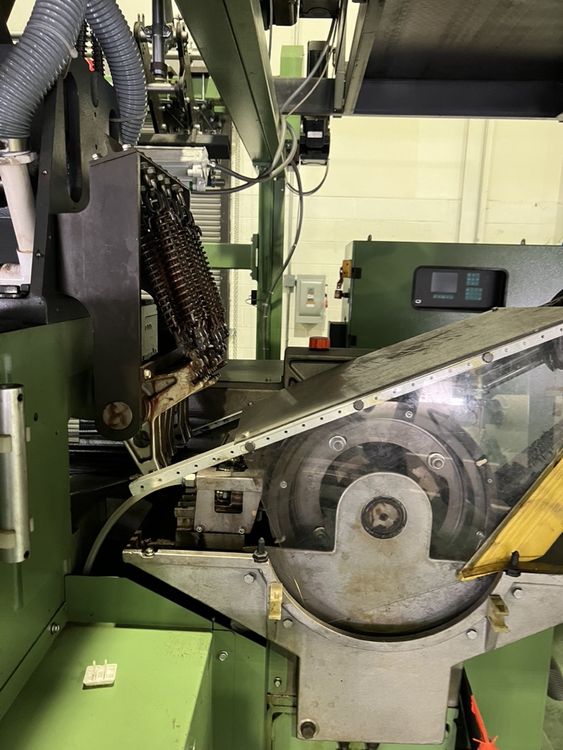

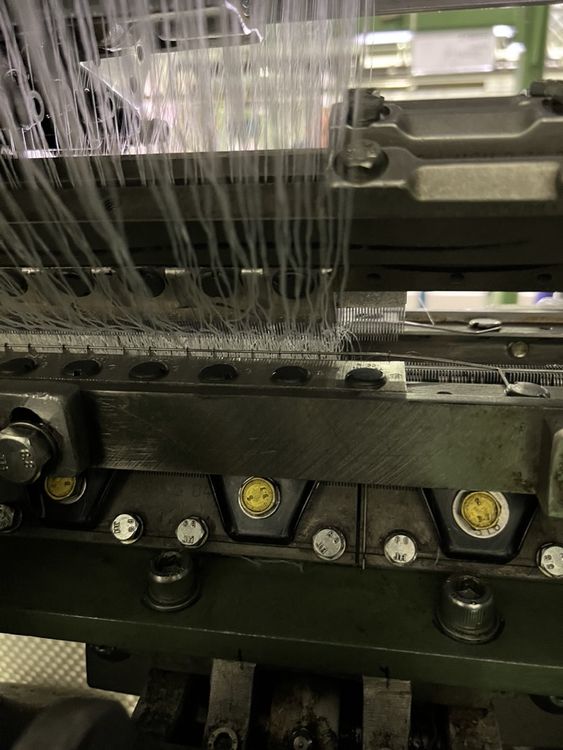

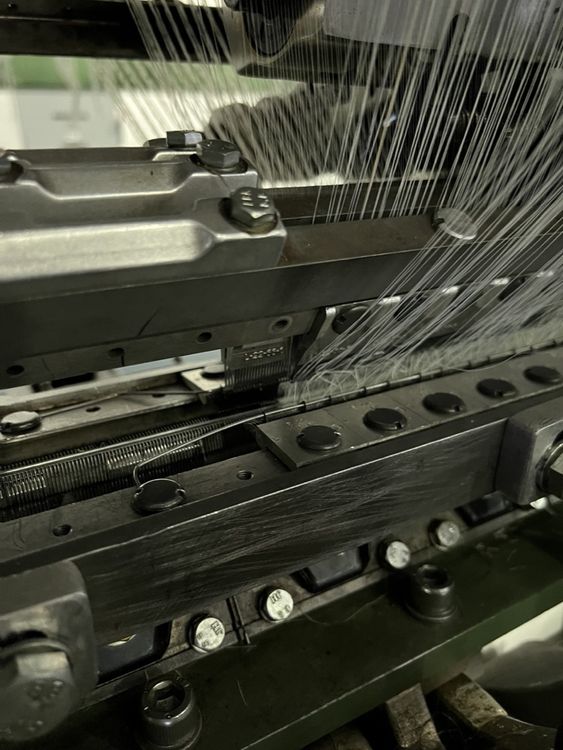

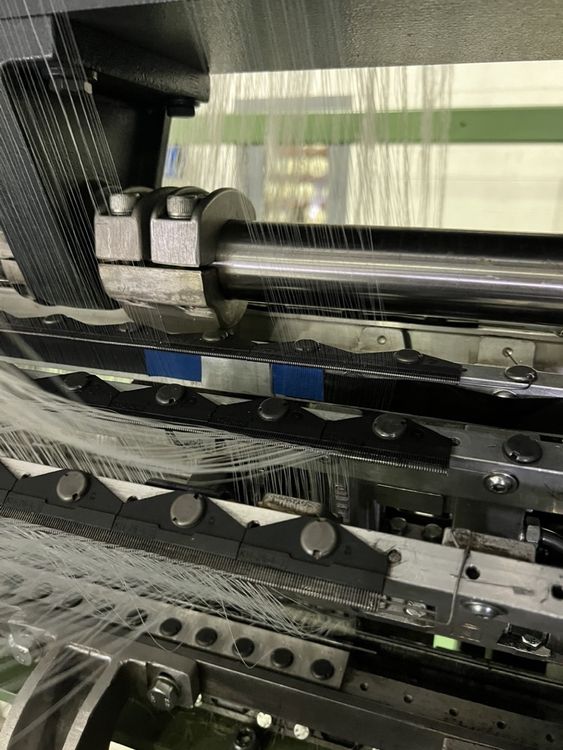

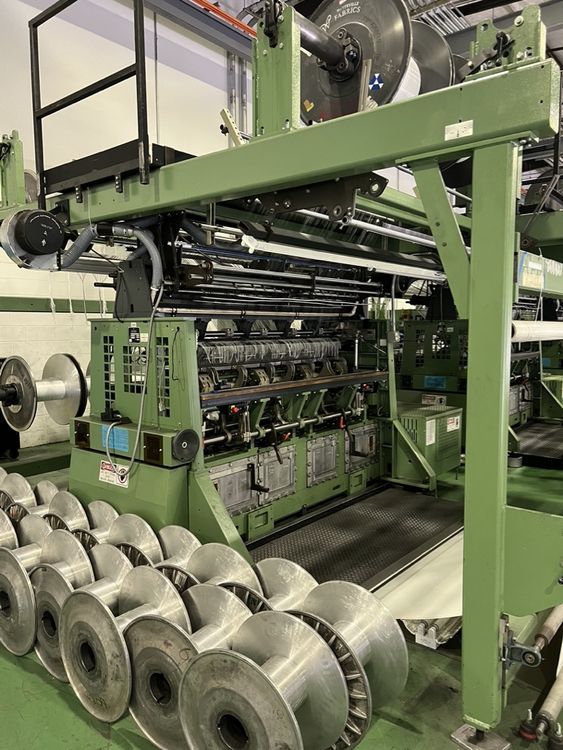

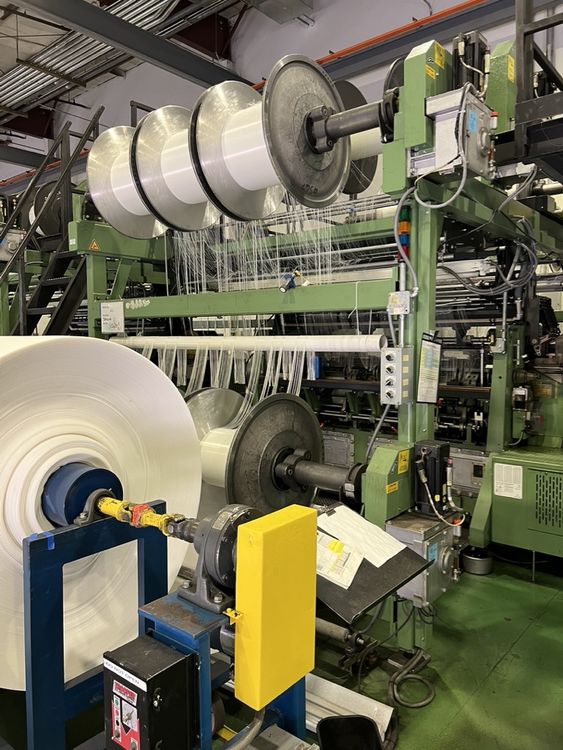

5 Karl mayer RD 6DPLM 77" 22E
Ref :
2514327-1-GO
Condition :
Used
Manufacturer :
Karl mayer
Model :
RD 6DPLM
Width :
77"
Gauge :
22E
Year(s) :
2003
Quantity :
5
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Last check :
05 Dec. 2023

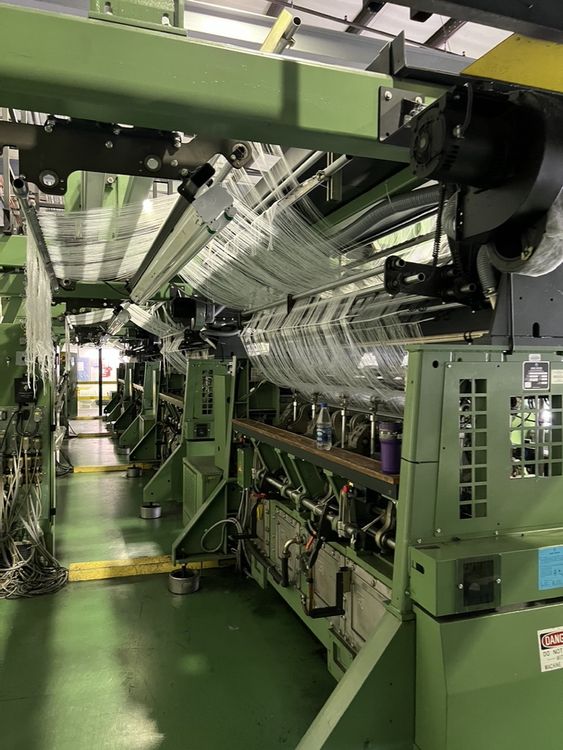

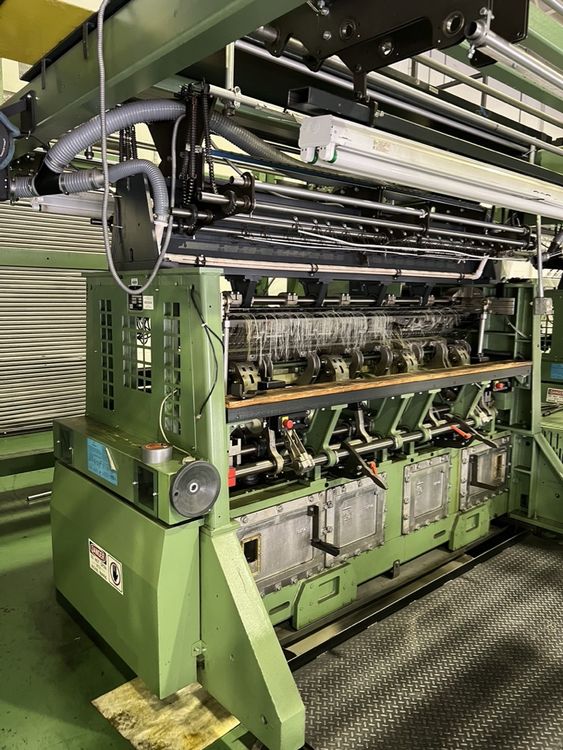

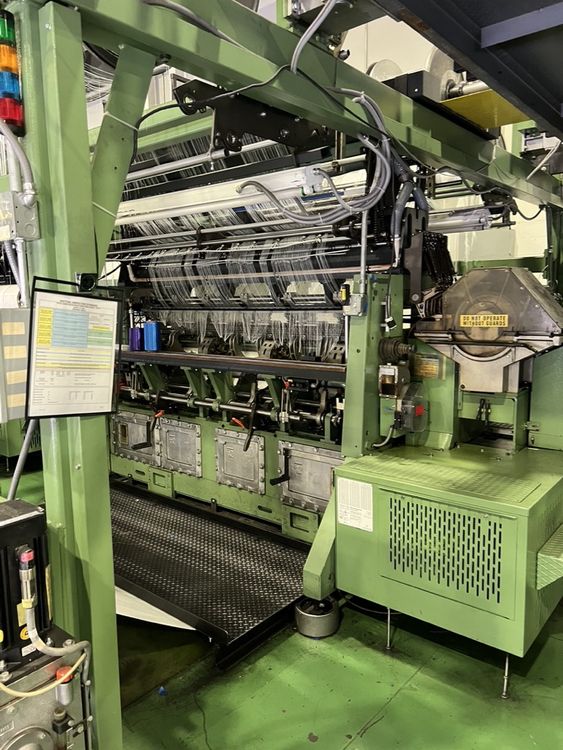

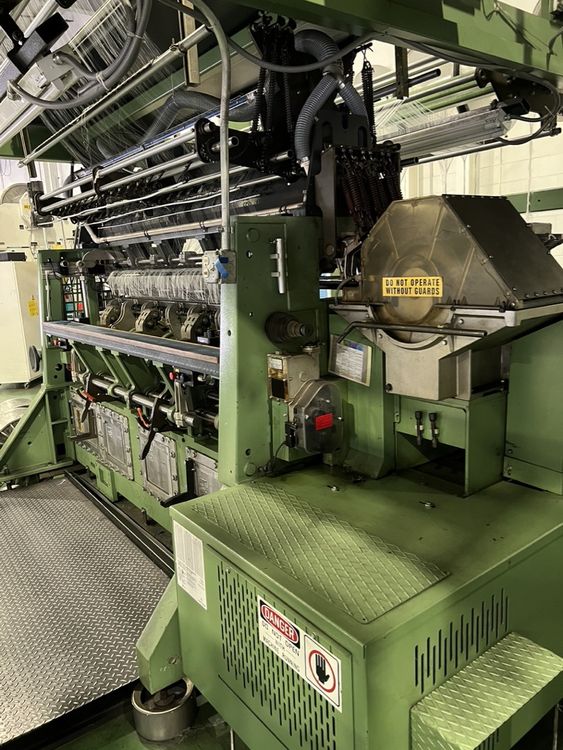

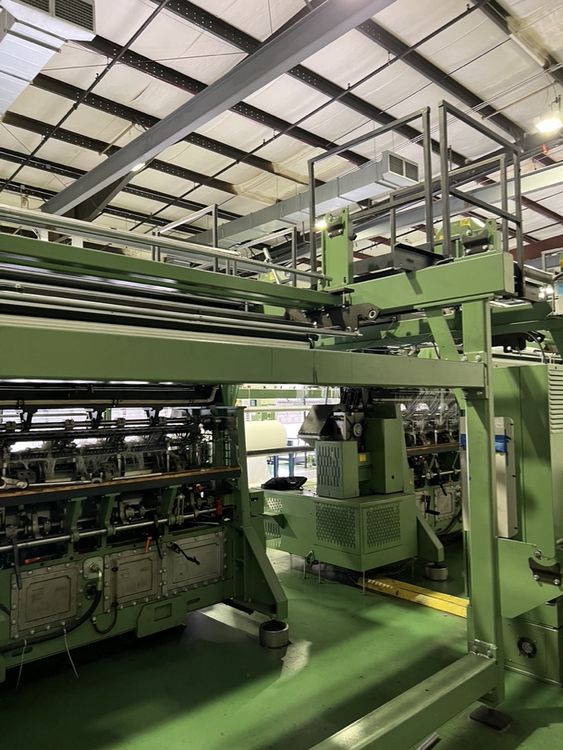

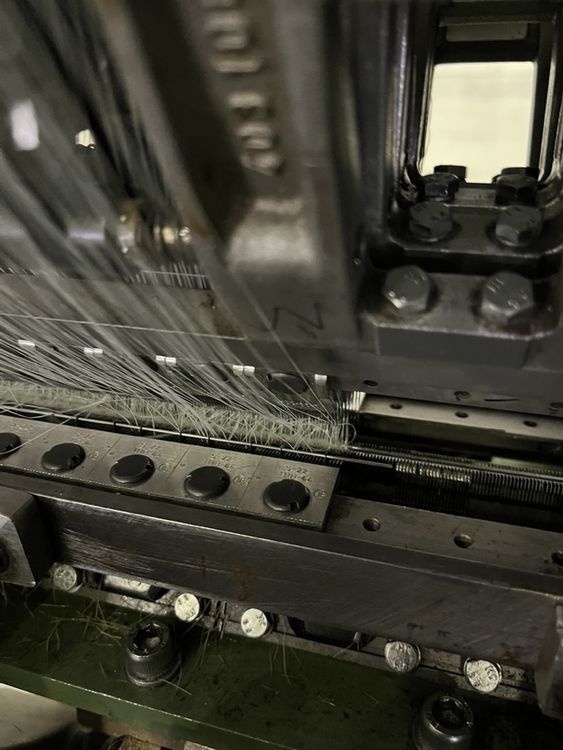

4 x Type RD 6DPLM 12-3 gauge E 22

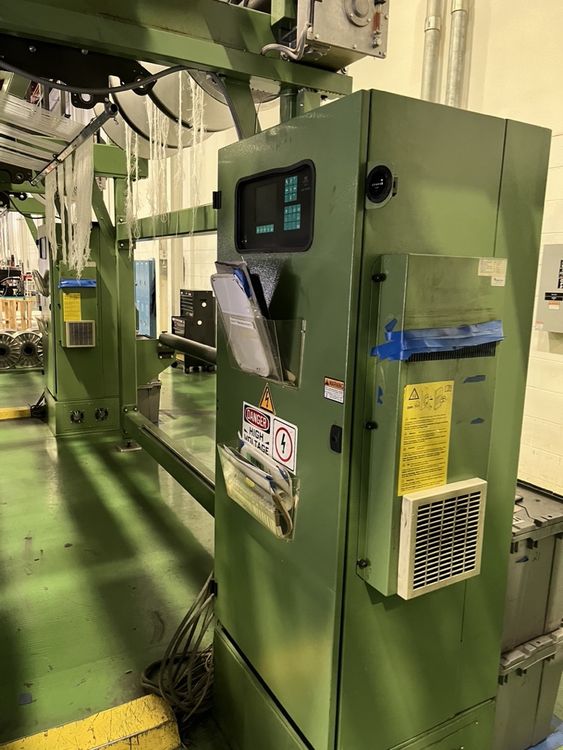

Voltage 480 v /3ph ,
speed of machines 500 - 850 RPM based on the fabric construction
Spacing 1.1545 mm , working width 1955.8 mm 77”

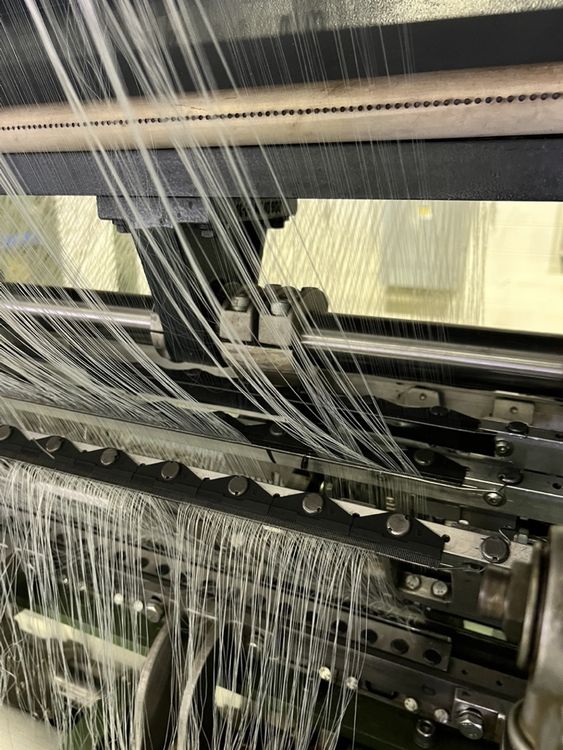

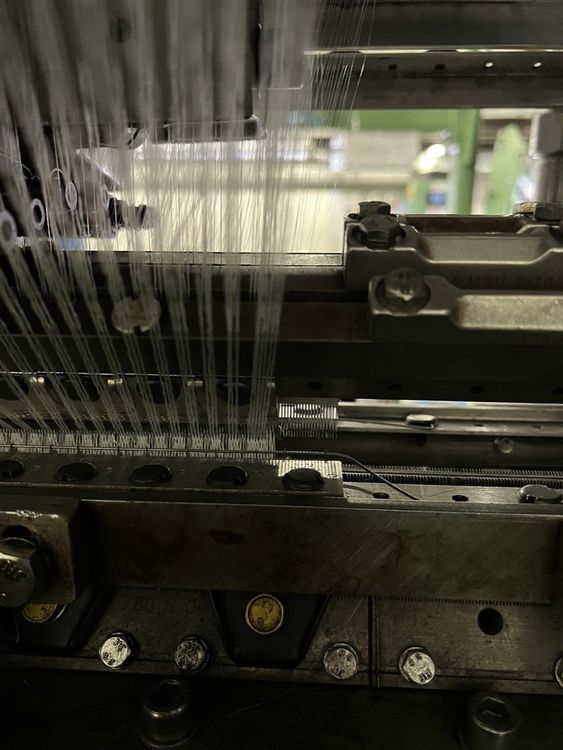

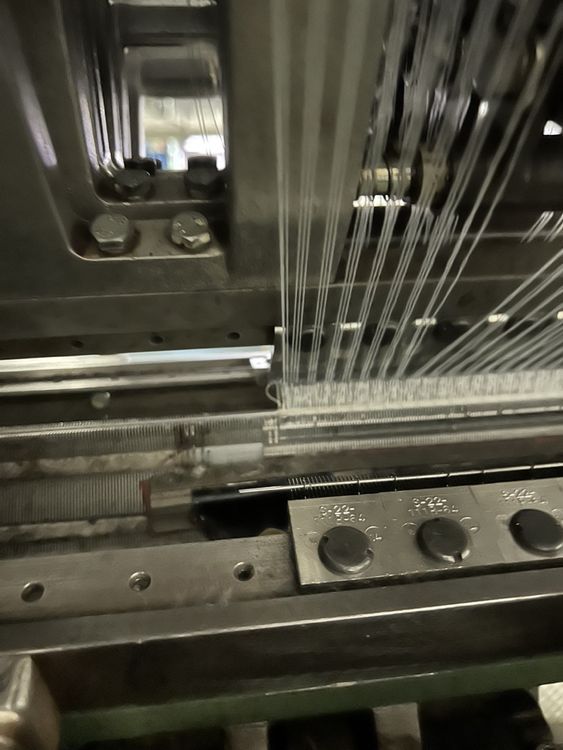

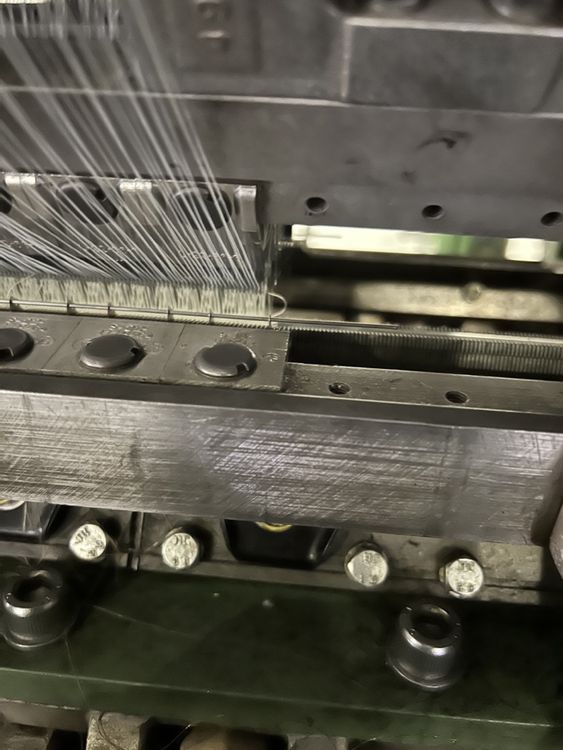

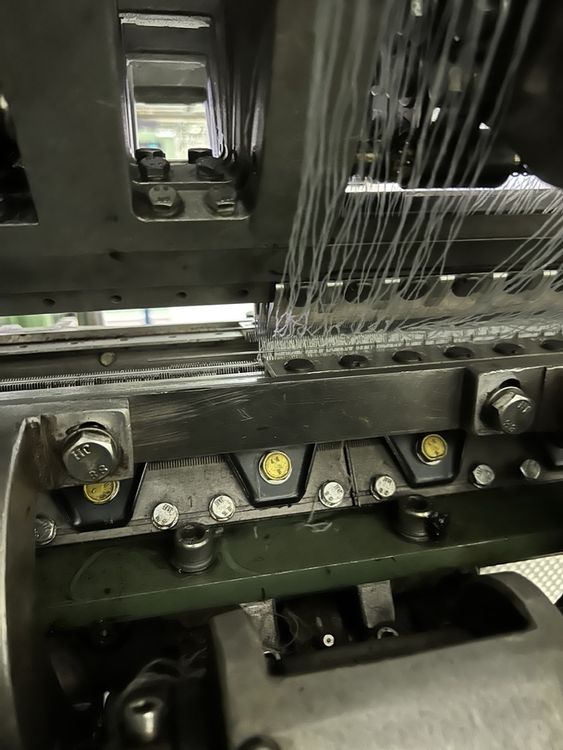

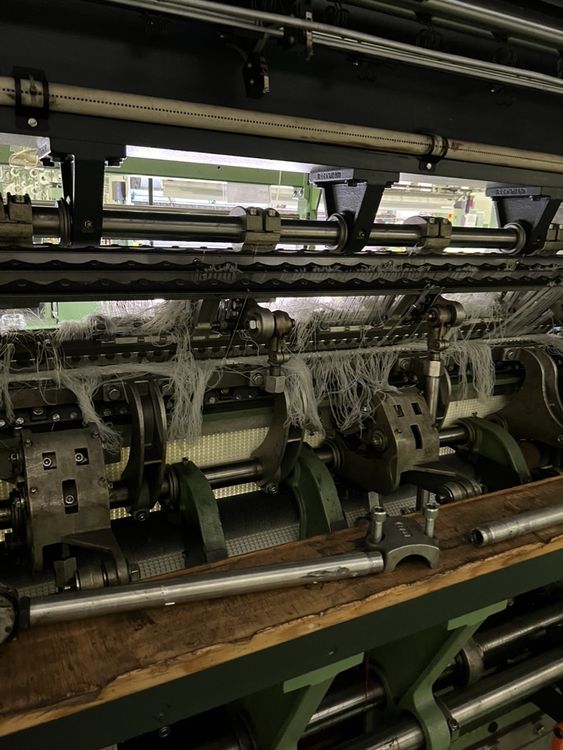

Double needle bar machine

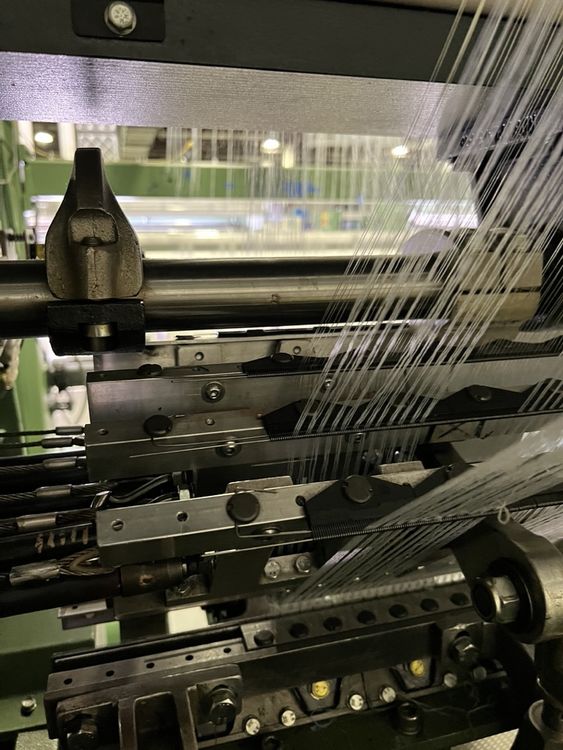

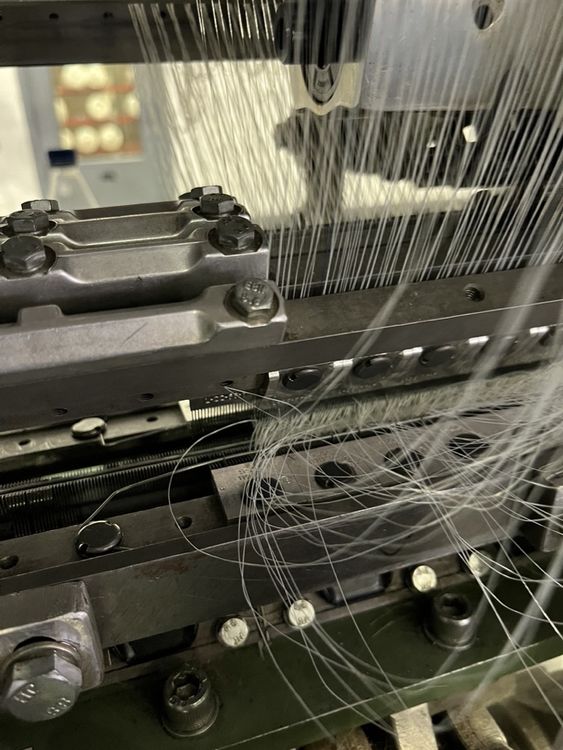

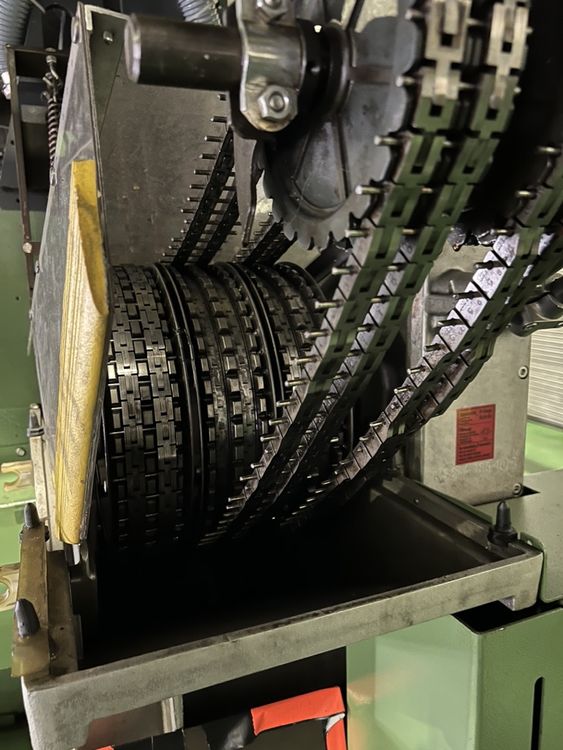

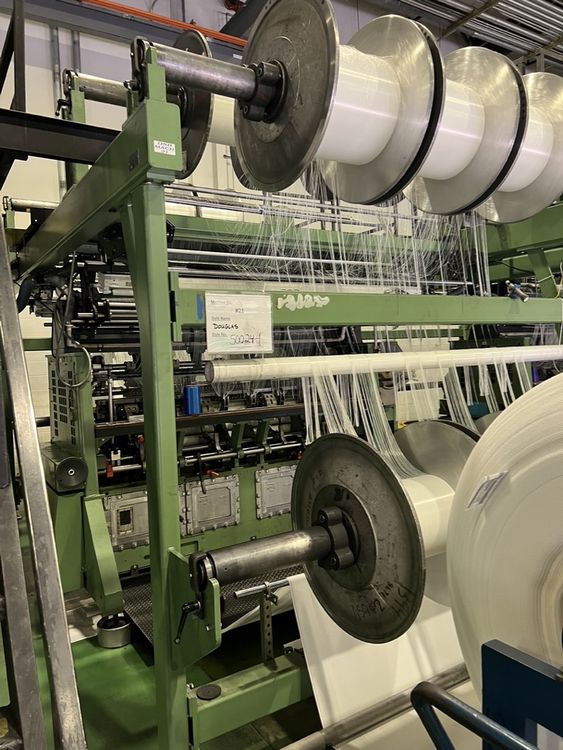

With 6 yarn guide bars,3 on the front and 3 on the back of the machine
4.5”Beam shaft diameter.
Producing spacer textiles fabrics 2mm to 12 mm thickness
No warp beams with machines
Used for Shoe, Mattress,Seats and Chairs.
