3 Others - Solar thermal collector production line

Brand: DIY machines
1)Ultrasonic welding machine Solstar 3s
Schunk Sonosystems GmbH

Full automatic
Welding ability: Cu-Cu or Alu-Cu
Maximum welding length: up to 10m
Tube diameter: ready for Ø10mm, but with accessories change has ability for Ø8mm, Ø12mm and Ø15mm
Foil width: 60-150mm
Welding speed: 1 – 15 m/min

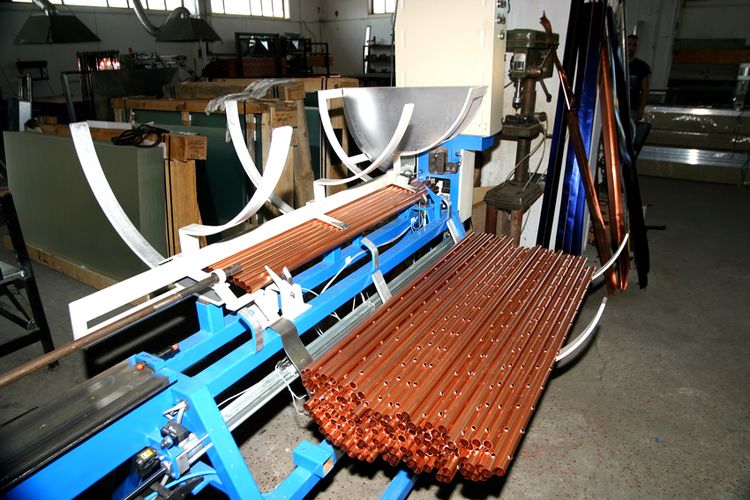

2)Tube punching machine
DIY machine

Full automatic
Tube diameter: Ø22mm
Maximum tube length: 1500mm
Punching speed: 1,5 m/min
Punching diameter: Ø8mm and Ø10mm

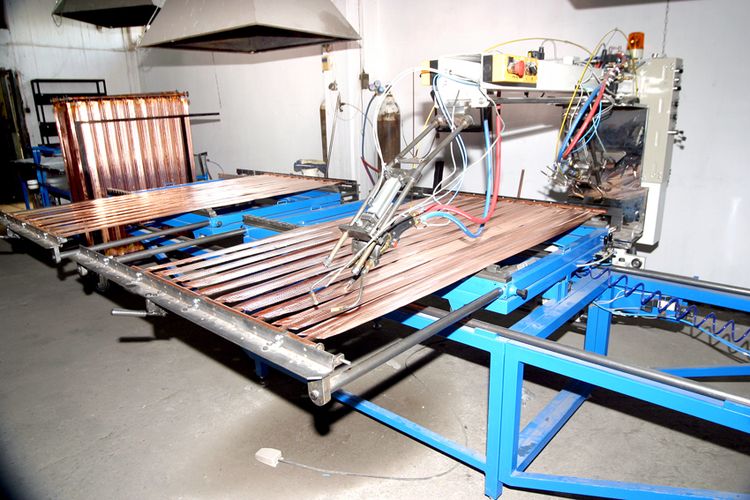

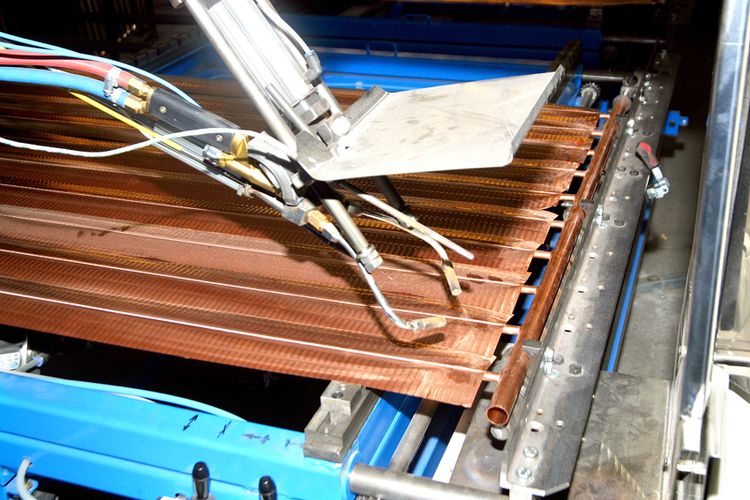

3)Harp frame welding machine
DIY machine

Semi-automatic
Two table working area
Production ability: 22 collectors/hour
