2 Fehrer, Hdb, Trutzschler Needling line

1. The lines enable the production of needle punched nonwovens with basis weights from 40g/m2 up to 500g/m2 in just one operation, thus offering maximum flexibility and the greatest possible economy.
2. The working width is up to 3.0m with a running speed of 10m/min.
3. Chemical finishing and adhesive application on the reverse side are possible, which increases the versatility of use.
4. The plant is in best condition with no maintenance or service backlog.
5. The plant has a transformer 20/04 KV as good as new from 2017.
6. Spare parts, belts and motors worth over 120,000 euros are in stock and can be purchased as well.
7. Sandt punching machine 1.5 m x 2.0 m
8. Second needle felt line 2m width analogue to the first plant
The lines are still working and could be visit.

Brand Machines Masch. - Typ YOC Capacity workingwidth

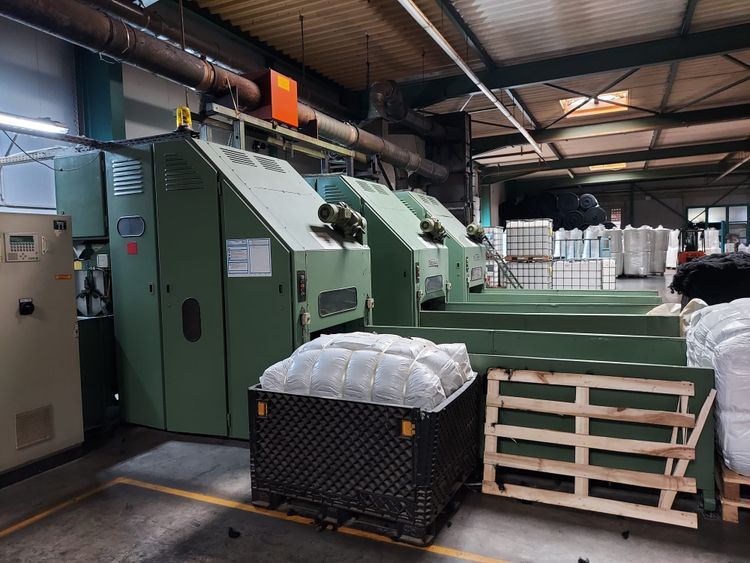

Trütschler 3 Balebreaker KNW 1979 Each BB 150 kg 1000
Hergerth Silo FS5 1991 500 kg 1000
Trütschler FBK FBK 3500 1985 bis 500 kg 3500
Erko Weighing belt EBW 02 2004 3500
HDB HDB card Prototype 1988 500 kg 3500
Hergeth crosslapper 6430153702 1991 3600
Fehrer Needle loom Pre-needle loom 680 strokes 3100
NL9 max max.

Fehrer Needle loom NL 28 1978 850 strokes/min 3200
Küsters Foulard

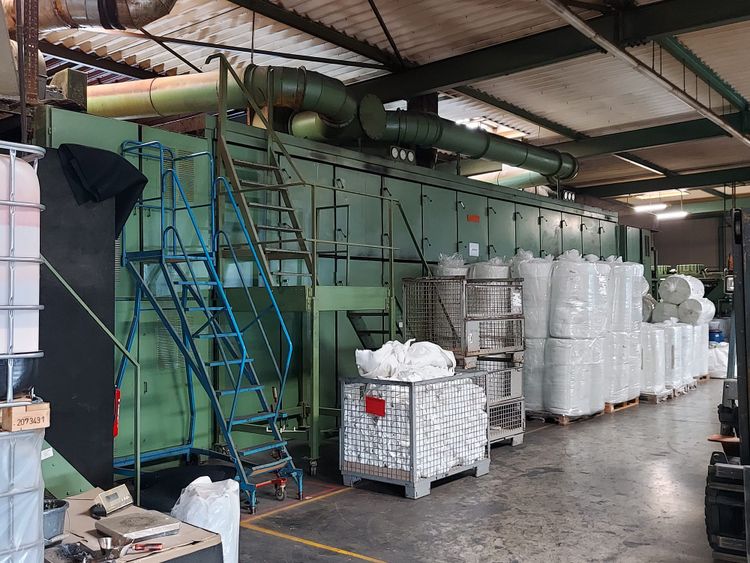

Mohr Dryer 3B3D3B40-120-3G 1990 30m/min 4000
3 levels
Mohr Spraying cabin Changier 1990 4000
Krögel / Shirp Length cutting 66H10 1990 19 knives
Double bar 4000
Krögel / Shirp Cross cutting 66H10 1990 20 blanks 4200
Perforation possible
Winder
