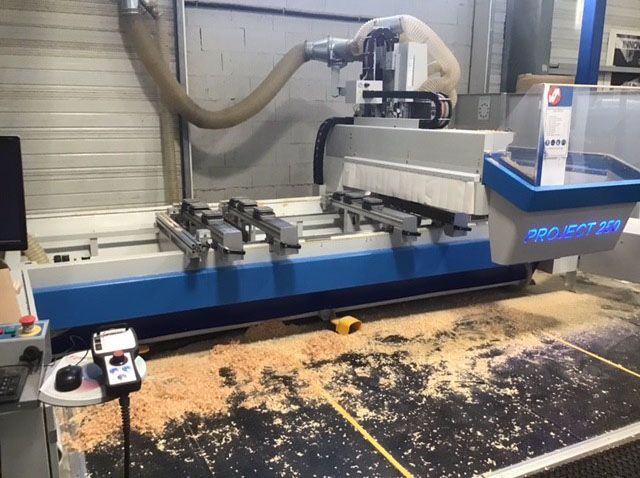

Masterwood PROJECT 250 4-AXIS

4-AXIS MILLING CENTER DRILLING & GROOVING

MACHINING CAPABILITIES:
- Max panel width: 1165 mm
Max passage width: 1425 mm
- Max panel length: 3000 mm
- Height, th. max panels: 200 mm
Movements:
- Travel X(U) axis: 3409, Y(V) axis: 1904, Z(W) axis: 350 mm
- Movement Speeds
in X(U) axis: 50 m/min
in Y(V) axis: 50 m/min
in Z(W) axis: 15 m/min

MACHINE COMPOSITION:
- 6 support bars, 18 suction cups (3 per bridge)
predisposition for other blocking devices (for linear and curved pieces)
4 workpiece lifters (loading/unloading aid)
2 possible work areas
- Centralized and timed lubrication all movements
- Remote control and PC with Masterworks software
- 1 Becker 2.5kW 90-108m3/h vacuum pump
- Floor protection mat
- Protective grid
• Milling & routing unit 8 kW
- Electro-spindle for 360° adjustable angle transmission head supplied
Rotation speed: 24000 rpm
with on-board changer 10 ISO 30 Taper Tools
Adjustable extraction hood
- Horizontal reclining electro-spindles
Power 2.2 kW RPM: 18000 rpm
2 ER25 outputs
Perimeter fume hood
• 1.7 kW drilling & grooving unit
- 13 Vertical chucks (7 in x & 6 in y)
Rotation speed: 4000 rpm
center distance 32 mm
- 6 Horizontal mandrels (4 in x & 2 in y)
- 1 creasing blade blade Ø 125 mm 4000 rpm
- Suction hood on the perimeter

OTHER CHARACTERISTICS:
- Power supply: 400v. Three-phase+N+E 50 Hz
- Installed power: 33.8 kVA IN 48.8 A
- Brushless motorization for travel
- Pneumatic supply: 7 to 8 bars
Consumption 100 Nl/min
- Suction Suction mouths: Ø 250 mm
Recommendation min 4900 m3/h speed 25-30 m/sec

Dimensions of the device installed with the enclosure: 5730 x 4410 x h.2480 mm
Dimensions for transport: to be specified when preparing the equipment
Weight: 3000 kg
