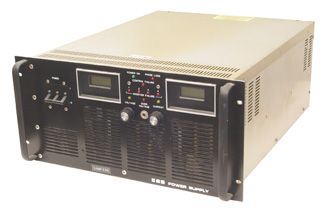

Electronic ESS 300-35 DC POWER SUPPLY
AMERICA North (USA-Canada-Mexico)
Maximum Output Voltage 300.00 Volts
Maximum Output Current 35.00 Amps
Maximum Output Power 10.50 kW
Regulation Modes Constant Current Constant Voltage
Panel Meters Digital
Control Type Programmable
External Cooling Forced Air Cooled
Other Information
Front panel controls or remote analog resistance, voltage and current programming
This power supply is reconfigured model # 400-25-2-D, item 39314
Maximum voltage decreased to 300V and maximum current increased to 35A
Extended Description Details at Instruction Manual 83481004rZ.pdf
Power Requirements 200-240 V 35.0 A 47-63 Hz 3 Phase
Condition Very Good
Exterior Dimensions
Width 19.000 in (48.3 cm)
Depth 22.000 in (55.9 cm)
Height 8.750 in (22.2 cm)
Weight 96 lb (44 kg)
